Foremay’s OC177 Family SSDs are flash disk modules designed to
deliver integrated on-board computing with minimized
footprint requirements for embedded computing and
ultra-mobile computing applications.
By leveraging
patented flash management technologies, Foremay's
OC177 disk-on-modules (DOM)
significantly increase reliability and life-time,
and provide unprecedented vibration, shock, and drop
resistance and tolerance.
We provide integrated services and a total solution
– from standard SSD module to customized design and
production. Using Foremay’s OC177
on-board solid state hard drive also reduces maintenance costs, which is
essential in harsh environments to lower the total
cost of ownership (TCO).
Currently there is two major series within
the OC177 Family. The OC177 Family is available in a
wide range of form factors and capacities to fit any
application. Select models support security features
for data protection.
OC177 Hi-Rel ™ Series, typical
specifications
OC177
Hi-Rel series SSDs are industrial grade and/or
military grade solid state drives for mission
critical applications.
Operating temperature: -40~+85°C or wider
|
Form Factor
|
R/W Speed,
Max. (MB/s)
|
Capacity
(GB)
|
Optional
Features
|
|

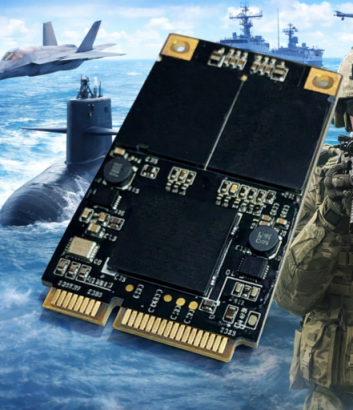

mSATA (MO-300B) |
550/510 |
30 ~ 120 GB |
S1, HE, CC |
|
slim SATA (MO-297A) |
500/500 |
30 ~ 120 GB |
S1, HE, CC |
|
IDE DOC®
(BGA NAND Drive)
|
70/50
|
8 ~ 32GB
|
S1, HE |
|
SATA DOC®
(BGA NAND Drive)
|
200/110
|
16 ~ 64GB
|
S1, HE |
|
1.8" micro SATA |
260/260 |
32 ~256 GB |
S1, HE, CC |
|
1.8" SATA |
260/260 |
32 ~ 64 GB |
S1, HE, CC |
|
mini PCIe / SATA |
260/260 |
32 ~ 64 GB |
S1, HE, CC |
|
mini PCIe
/ IDE
|
40/30
|
8 ~ 64GB
|
S1, HE, CC |
|
1.3" ZIF DOM |
50/30 |
8 ~ 64 GB |
S1, HE, CC |
|
IDE DOM,
40/44P &
H/V
|
40/30
|
8 ~ 64 GB
|
S1, HE, CC |
|
Industrial Grade USB
|
USB 2.0
|
8 ~ 64GB
|
S1, HE, CC |
|
Industrial Grade micro SD/SDHC card
|
166X
|
8 ~ 32GB
|
S1, HE, CC |
Optional feature code:
S1:
Type-I secure erase
HE:
Encryption
CC:
Conformal coating
Please
contact a Foremay's sales representative if your
required special feature is not listed here. We can
design and build a customized product for you.
OC177 ™ G-Series, typical
specifications
Operating temperature: 0~+70°C or wider
|
Form Factor
|
R/W Speed,
Max. (MB/s)
|
Capacity
(GB)
|
Remarks
|
|
mSATA (MO-300B) |
550/510 |
30 ~ 240 GB |
Secure Erase Option |
|
1.8" micro SATA |
270/270 |
32 ~ 500 GB |
|
|
1.5" SATA FDM(MO-297) |
250/250 |
16 ~ 64 GB |
|
|
1.2"
mini PCIe |
250/250 |
32 ~ 64 GB |
SATA
interface |
|
1.3" mini PCIe
|
60/40
|
8 ~ 32 GB
|
PATA
interface
|
|
1.8” ZIF
|
80/50
|
32 ~
128
|
|
|
1.3" ZIF FDM |
70/50 |
8 ~ 32 GB |
|
|
IDE FDM
|
50/40
|
4 ~ 32 GB
|
40/44P &
H/V
|
|
USB FDM
|
35/20
|
8 ~ 32 GB
|
|
|
IDE DOC®
(BGA NAND Drive)
|
70/50
|
8 ~ 32GB
|
|
|
SATA DOC®
(BGA NAND Drive)
|
200/110
|
16 ~ 64GB
|
|
Please contact a Foremay's sales representative if
your required special feature is not listed here. We
can design and build a customized product for you. |
